Cardboard Edge Protectors: Stop Pallet Strapping Damage
Cardboard Edge Protectors: Stop Pallet Strapping Damage
Cardboard Edge Protectors: Preventing Strapping Damage on Export Pallets
You have engineered the perfect product, manufactured it to exact specifications, and packed it into high-quality corrugated boxes. But when the shipping container is opened at the destination port thousands of miles away, the top layer of boxes is crushed, and the products inside are damaged.
The culprit? Pallet strapping tension combined with dynamic transit shifting.
For supply chain directors and logistics managers, transit damage is a silent margin killer. To secure heavy loads for international ocean or air freight, high-tension plastic or steel strapping is mandatory. However, without proper reinforcement, these straps act like blades cutting into your corrugated cartons.
The ultimate, cost-effective solution to this global logistics problem is the Heavy-Duty Cardboard Edge Protector(also known as edge boards, V-boards, or corner guards). In this guide, we break down the engineering behind edge protection and why switching to FSC®-certified paper edge boards is critical for your 2026 supply chain.
Executive Summary: The Quick Verdict
- The Problem:High-tension strapping and container vibrations cause box crush, load shifting, and product damage, leading to expensive return logistics and unhappy end-users.
- The Solution:Cardboard edge protectors distribute strapping tension evenly across the pallet's edges and act as structural pillars to increase vertical stacking strength.
- The ESG Bonus:FSC-certified kraft paper edge boards are 100% recyclable, allowing brands to eliminate plastic corner guards and avoid the EU Plastic Packaging Tax.
1. The Physics of Strapping Damage and Box Crush

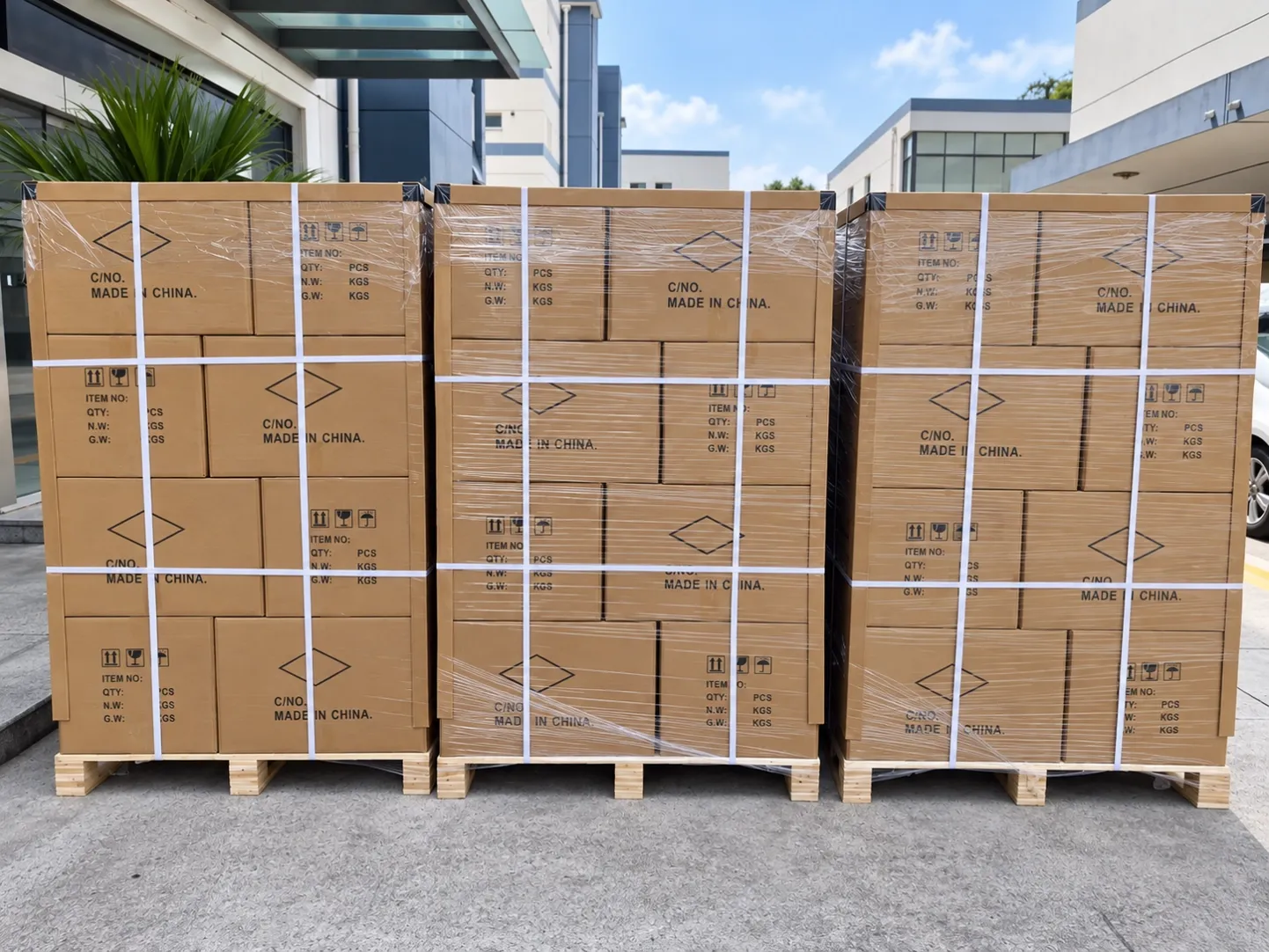

When a pallet is secured for export, the strapping bands are pulled extremely tight to prevent the boxes from shifting.
However, the corners of standard corrugated boxes are their weakest points. The concentrated pressure from the strap easily crushes the flutes inside the corrugated cardboard. When the ship hits rough seas or a forklift brakes suddenly, the dynamic kinetic energy causes the straps to bite even deeper into the crushed corners, compromising the entire structural integrity of the palletized load.
How Edge Boards Solve This:

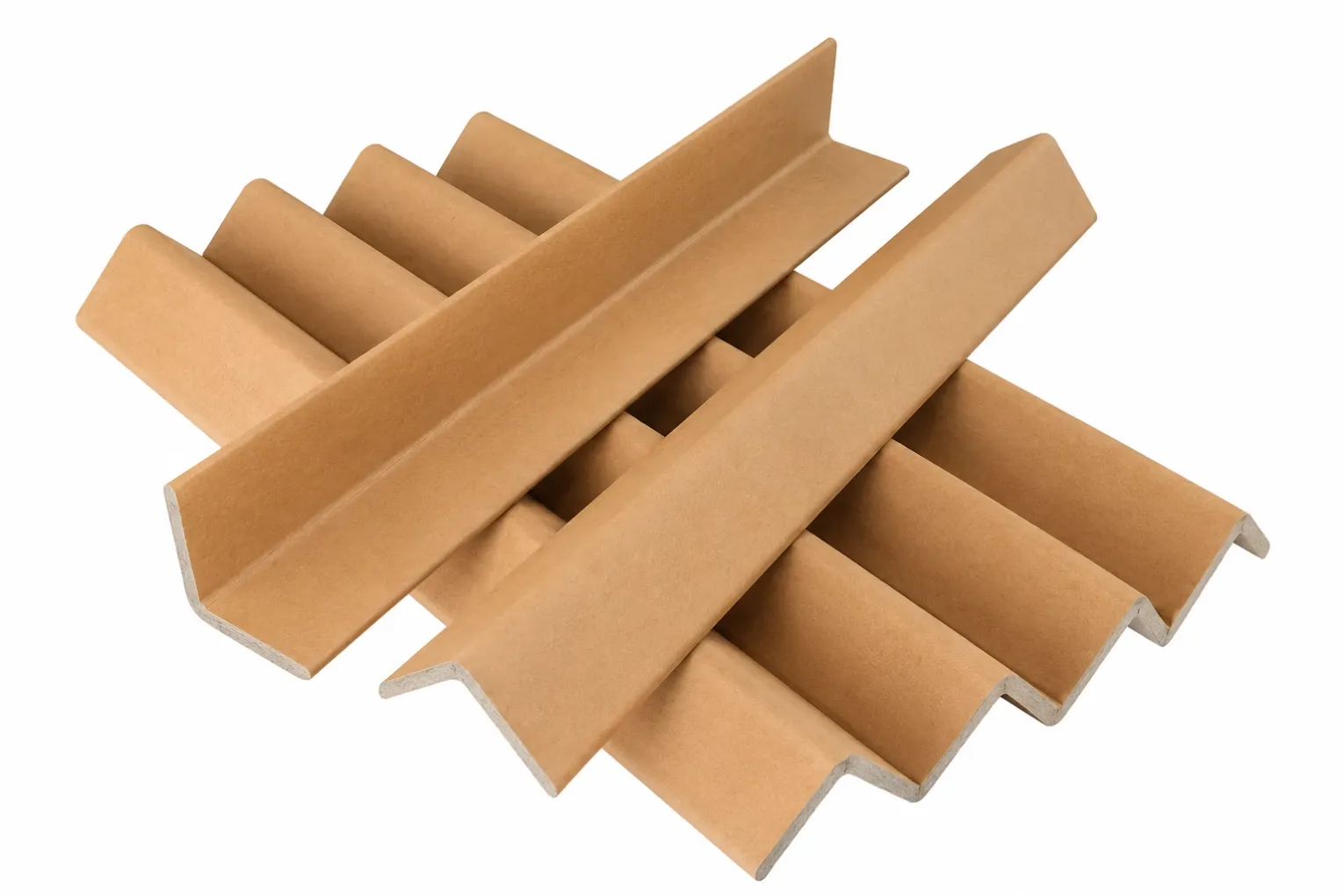

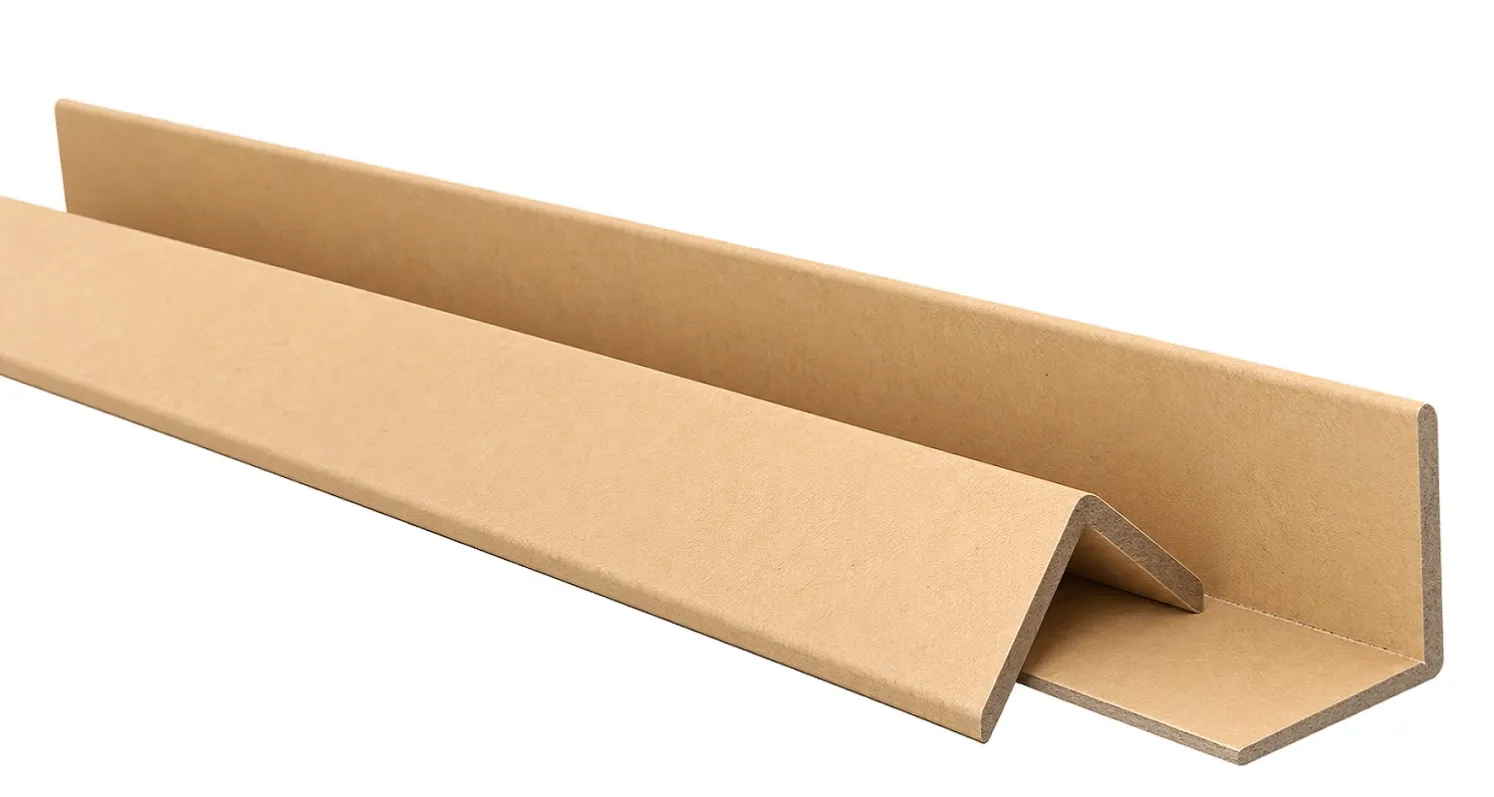

A cardboard edge protector is manufactured by laminating multiple layers of high-strength recycled kraft paper under extreme pressure, forming a rigid 90-degree angle. When placed under the strapping bands, it acts as a rigid shield. Instead of the tension being concentrated on a 1-inch section of the box corner, the V-board distributes that force evenly across the entire length of the edge.
2. Pallet Stabilization: The "Structural Pillar" Effect
Preventing strap damage is only half the battle. In modern logistics, maximizing container space means stacking pallets two or even three high.
If the bottom pallet cannot support the weight of the pallets above it, the entire column will collapse. Cardboard edge protectors placed vertically along the four corners of a pallet act as load-bearing structural pillars.
By reinforcing the vertical crush resistance of the load, heavy-duty edge boards allow warehouses and freight forwarders to stack pallets higher and safer, drastically improving volumetric efficiency in shipping containers and warehouses.
3. Replacing Plastic: The ESG and Financial Mandate
Historically, some industries used plastic corner guards to protect heavy machinery or industrial goods. In 2026, this is no longer a viable financial strategy.
With the enforcement of the UK and EU Plastic Packaging Tax, importing plastic packaging components incurs heavy penalties. Furthermore, end-users are increasingly frustrated by the disposal costs associated with mixed-material packaging (e.g., separating plastic guards from cardboard boxes).
FSC®-Certified Paper Edge Protectors offer the exact same impact resistance as plastic but are 100% biodegradable and universally recyclable in standard cardboard streams. You eliminate plastic taxes and provide your customers with a seamless, zero-cost disposal experience.
Frequently Asked Questions (FAQ)
Q1: What sizes and thicknesses do cardboard edge protectors come in?
As a backend OEM manufacturer, Maxwell TecX custom-cuts edge boards to your exact specifications. Leg widths (wing sizes) typically range from 30x30mm to 100x100mm, with thicknesses from 3mm up to 10mm for heavy-duty industrial applications. Lengths can be cut from 50mm up to 3,000mm.
Q2: Can paper edge protectors withstand high humidity during ocean freight?
Standard kraft paper absorbs moisture, which can weaken its rigidity. However, for ocean freight or cold-chain logistics, we apply a specialized moisture-resistant coating to the edge boards, ensuring they maintain their structural integrity in high-humidity environments.
Q3: Can we print our company logo on the edge boards?
Yes. Custom printing is a highly cost-effective way to enhance brand visibility. We can print your company logo, handling instructions (e.g., "Do Not Double Stack"), or recycling symbols directly onto the outer kraft liner.
Conclusion: Secure Your Cargo and Your Margins
A damaged shipment costs far more than the product itself—it costs you client trust, return shipping fees, and administrative headaches. By integrating heavy-duty cardboard edge protectors into your palletization process, you guarantee that your products arrive in pristine condition.
If you are a packaging distributor or global exporter looking for a reliable, FSC-certified backend OEM, Maxwell TecX is your strategic partner.
Contact our packaging engineers today for a custom edge protection quote and secure your supply chain.
